Ultimaker S5

Power, reliable, versatile 3D printing
Discover the easy-to-use desktop 3D printer with a large build
volume that delivers accurate, industrial-grade parts, time and
again. With simple setup, high uptime, and reliable dual
extrusion, Ultimaker S5 is the complete professional 3D
printing solution.

Scale up your productivity and ambition

Features summary

The Ultimaker S5 is built to run continuously and maximize uptime. Its best-in-class technical specifications deliver performance you can rely on. Designed for your success, the Ultimaker S5 is part of the complete Ultimaker 3D printing solution – one trusted by hundreds of thousands of professionals worldwide.

  • Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
  • Compatible with high-strength glass and carbon fiber filament
  • Down to 20 micron (0.001 inch) layer resolution
  • Open filament system – print with any 2.85 mm material
  • 4.7-inch touchscreen interface – Winner of iF Design Award 2019

Enhanced reliability

Trust the Ultimaker S5 to do its job while you do yours. Its advanced active bed leveling ensures a perfect first layer, glass doors control the airflow, and dual filament flow sensors will pause your print and notify you if you run out of material.

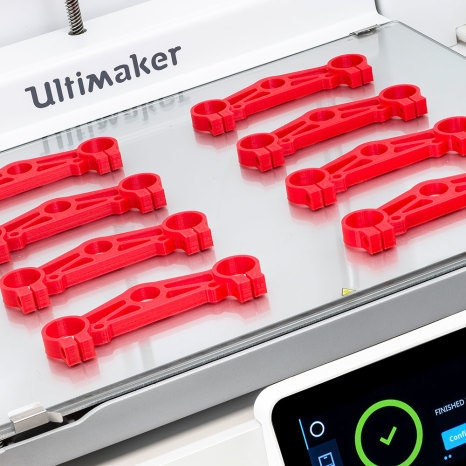

Bigger build volume

A build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) gives you more freedom to produce larger designs or print multiple parts on one build plate. So you can meet demand with maximum efficiency, with a 3D printer that fits comfortably on your desk.

Composite-ready

Thanks to our pioneering alliance with global materials companies, Ultimaker S5 offers an easy way to print with the world’s most advanced filaments – including glass and carbon fiber composites.

For non-abrasive filaments, switch between build and support material in seconds, choosing from 0.8, 0.4, or 0.25 mm print cores for fast or detailed prints. To unlock more high-end applications with abrasive materials, select print core CC Red 0.6 (sold separately).

Award-winning touchscreen interface

Winner of a 2019 iF Design Award, the touchscreen interface simplifies every action with the Ultimaker S5. Step-by-step setup, navigation, and maintenance remove the need for training and deliver a hassle-free, intuitive 3D printing experience.

+ Summary
Features summary

The Ultimaker S5 is built to run continuously and maximize uptime. Its best-in-class technical specifications deliver performance you can rely on. Designed for your success, the Ultimaker S5 is part of the complete Ultimaker 3D printing solution – one trusted by hundreds of thousands of professionals worldwide.

  • Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
  • Compatible with high-strength glass and carbon fiber filament
  • Down to 20 micron (0.001 inch) layer resolution
  • Open filament system – print with any 2.85 mm material
  • 4.7-inch touchscreen interface – Winner of iF Design Award 2019

+ Reliable
Enhanced reliability

Trust the Ultimaker S5 to do its job while you do yours. Its advanced active bed leveling ensures a perfect first layer, glass doors control the airflow, and dual filament flow sensors will pause your print and notify you if you run out of material.

+ Build volume
Bigger build volume

A build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) gives you more freedom to produce larger designs or print multiple parts on one build plate. So you can meet demand with maximum efficiency, with a 3D printer that fits comfortably on your desk.

+ Composites
Composite-ready

Thanks to our pioneering alliance with global materials companies, Ultimaker S5 offers an easy way to print with the world’s most advanced filaments – including glass and carbon fiber composites.

For non-abrasive filaments, switch between build and support material in seconds, choosing from 0.8, 0.4, or 0.25 mm print cores for fast or detailed prints. To unlock more high-end applications with abrasive materials, select print core CC Red 0.6 (sold separately).

+ Touchscreen
Award-winning touchscreen interface

Winner of a 2019 iF Design Award, the touchscreen interface simplifies every action with the Ultimaker S5. Step-by-step setup, navigation, and maintenance remove the need for training and deliver a hassle-free, intuitive 3D printing experience.

Trusted by the world's leading brands

Decathlon
Volkwagen
Seimens
Zeiss
L_Oreal
Ford

Ultimaker S5 technical specifications

330 x 240 x 300 mm

(13 x 9.4 x 11.8 inches)

495 x 585 x 780 mm

(19.5 x 23 x 30.7 inches)

Fused filament fabrication (FFF)

20.6 kg (45.4 lbs)

500 W

0.25 mm nozzle: 150 - 60 micron

0.4 mm nozzle: 200 - 20 micron

0.6 mm nozzle: 300 - 20 micron

0.8 mm nozzle: 600 - 20 micron

6.9, 6.9, 2.5 micron

Dual-geared feeder, reinforced for composite materials

4.7-inch (11.9 cm) color touchscreen

Swappable print cores

Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

< 24 mm³/s

180 - 280 °C

< 2 minutes

< 50 dBA

Advanced active leveling

20 - 140 °C heated glass build plate

< 4 minutes (from 20 to 60 °C)

15 - 32 °C (59 - 90 °F)

0 - 32 °C (32 - 90 °F)

Ultimaker Cura – print preparation software

Ultimaker Connect – printer management software

Ultimaker Cloud

Supported OS

MacOS, Windows, and Linux

SolidWorks, Siemens NX, Autodesk Inventor

Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG

Printable formats: G, GCODE, GCODE.gz, UFP

Wi-Fi, LAN, USB

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

Training

Training is available online or via our dedicated network of local service partners (recommended).

Warranty period

12 months

Lifetime support

Expert technical support via email, phone, or from our global community is available to you for the lifetime of your printer.

Extended support

Online resources, extensive manuals (in multiple languages), material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more.

+ Dimensions

330 x 240 x 300 mm

(13 x 9.4 x 11.8 inches)

495 x 585 x 780 mm

(19.5 x 23 x 30.7 inches)

Fused filament fabrication (FFF)

20.6 kg (45.4 lbs)

500 W

+ Printer properties

0.25 mm nozzle: 150 - 60 micron

0.4 mm nozzle: 200 - 20 micron

0.6 mm nozzle: 300 - 20 micron

0.8 mm nozzle: 600 - 20 micron

6.9, 6.9, 2.5 micron

Dual-geared feeder, reinforced for composite materials

4.7-inch (11.9 cm) color touchscreen

Swappable print cores

Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

+ Operation parameters

< 24 mm³/s

180 - 280 °C

< 2 minutes

< 50 dBA

Advanced active leveling

20 - 140 °C heated glass build plate

< 4 minutes (from 20 to 60 °C)

15 - 32 °C (59 - 90 °F)

0 - 32 °C (32 - 90 °F)

+ Ecosystem

Ultimaker Cura – print preparation software

Ultimaker Connect – printer management software

Ultimaker Cloud

Supported OS

MacOS, Windows, and Linux

SolidWorks, Siemens NX, Autodesk Inventor

Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG

Printable formats: G, GCODE, GCODE.gz, UFP

Wi-Fi, LAN, USB

+ Safety and compliance

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

+ Service and support

Training

Training is available online or via our dedicated network of local service partners (recommended).

Warranty period

12 months

Lifetime support

Expert technical support via email, phone, or from our global community is available to you for the lifetime of your printer.

Extended support

Online resources, extensive manuals (in multiple languages), material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more.

Optimized for the widest range of materials

Unlock more applications using any Ultimaker or Marketplace filament

Ultimaker PLA

Easy, Stiff, High strength, Multi-color, Visual,
Translucent

Ultimaker Tough PLA

Easy, Stiff, High strength, Tough

Ultimaker ABS

Tough, High strength, Multi-color

Ultimaker Nylon

Tough, Wear resistant, Translucent, Low friction

Ultimaker CPE

High strength, Multi-color, Translucent

Ultimaker CPE+

High strength, Heat resistant, Translucent

Show all (11)

Ultimaker PC

Stiff, High strength, Tough, Heat resistant,
Flame retardant, Translucent

Ultimaker PP

Flexible, Wear resistant, Translucent

Ultimaker TPU 95A

Flexible, Tough, Wear resistant

Ultimaker PVA

Support material, Water-soluble

Ultimaker Breakaway

Support material, Easy

Upgrade your Ultimaker S5 experience

Ultimaker-S5-print-core-CC-red

Print core CC Red 0.6

This 0.6 mm diameter nozzle has a wear-
resistant ruby at its tip. Tested to print more
than 10 kg of glass or carbon fiber with zero
loss of print quality, it offers an extended
lifetime of reliable composites 3D printing.

Ultimaker-S5-adhesion-sheets

Adhesion sheets

A pack of 25 adhesion sheets to ensure
consistent, high-quality results by achieving
an optimal print surface and excellent build
plate adhesion for your 3D print – whatever
your choice of material.

Ultimaker-S5-cleaning-filament

Cleaning filament

A pack of ten 20 cm (8 inch) cleaning
filaments ensure your Ultimaker S5 print
cores are always in optimal condition. These
are especially effective in cleaning print core
BB for printing with Ultimaker PVA.
